Console Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .
  3. Remove the selector lever knob (AT), shift lever knob (MT).
  4. Remove in the order indicated in the illustration.

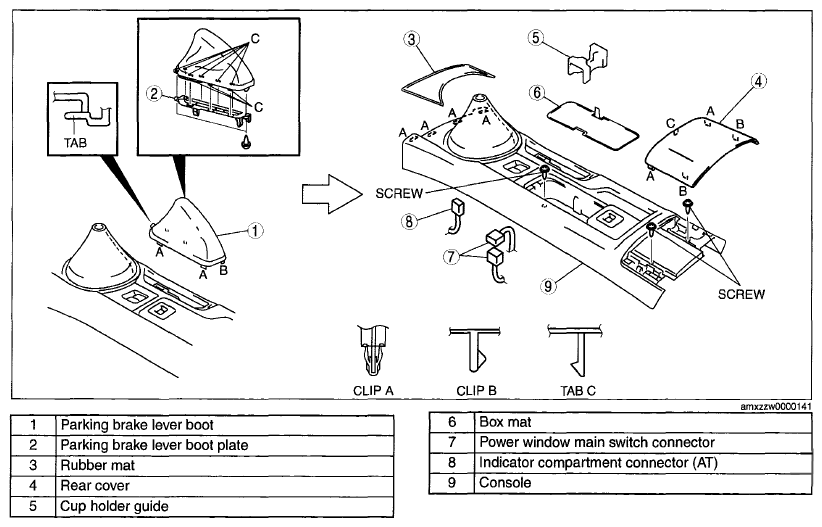

    Fig 1: Console Components
    G06149749Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
