Column Cover Removal/Installation

  1. Remove the tab A, then remove the upper column cover.
  2. Remove the screws, then remove the lower column cover.
  3. Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION )
  4. Install in the reverse order of removal.

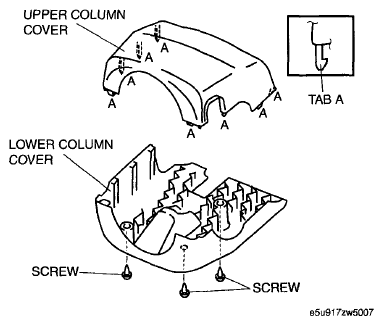

    Fig 1: Upper Column Cover And Lower Column Cover With Screws
    G06149734Courtesy of MAZDA MOTORS CORP.
