Power Retractable Hardtop Control Module Removal/Installation

  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
  3. Remove the service hole cover (LH) of the back trim.
  4. Partially peel back the power retractable hardtop cover.
  5. Remove the roof hook cable case.

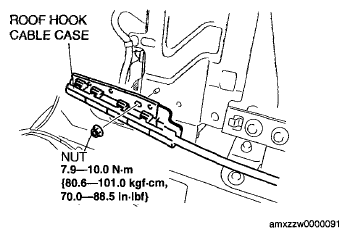

    Fig 1: Roof Hook Cable Case And Nut With Torque Specifications
    G06149647Courtesy of MAZDA MOTORS CORP.
  6. Remove in the order indicated in the illustration.

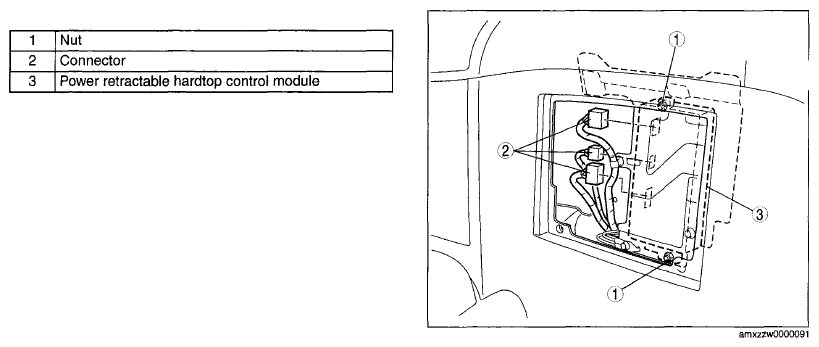

    Fig 2: Power Retractable Hardtop Control Module, Connector And Nut
    G06149648Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
