Total Toe-in Adjustment

Loosen the installation nut of the adjusting cam bolt.

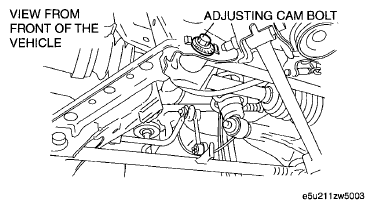

Fig 1: Adjusting Cam Bolt
Courtesy of MAZDA MOTORS CORP.
Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Standard

3±4 mm {0.08±0.15 in} (0°17'±20)

Fig 2: Adjusting Cam Bolt Direction
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Refer to the following illustration for the adjusting angle per one graduation of the toe-in gauge.
Tighten the nut.
Tightening torque

67.7-01.6 N.m {6.91-9.34 kgf.m, 50.0-67.5 ft.lbf]

Fig 3: Adjusting Cam Bolt Direction
Courtesy of MAZDA MOTORS CORP.
