Control System Location Index

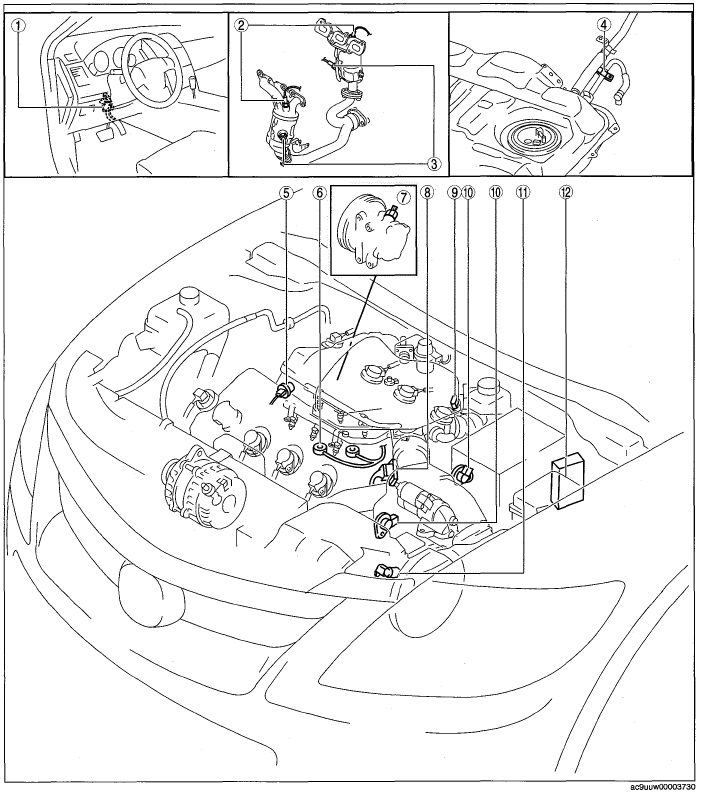

Fig 1: Identifying Control System Components Location (1 Of 2)
G00512278Courtesy of MAZDA MOTORS CORP.

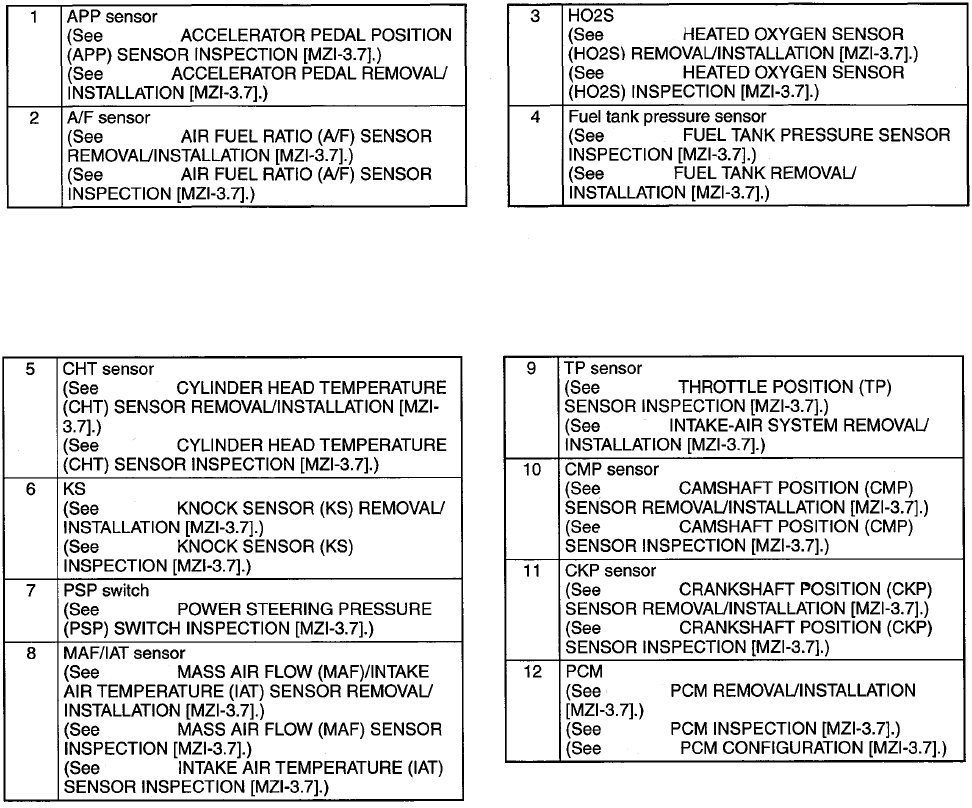

Fig 2: Identifying Control System Components Location (2 Of 2)
G00512279Courtesy of MAZDA MOTORS CORP.
