Camshaft Position (CMP) Sensor Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)
  2. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .)
  3. Remove the following part for easier access.
  4. Disconnect the CMP sensor connector
  5. Remove the CMP sensor.
    NOTE:
    • Lubricate the CMP O-ring seal with clean engine oil.

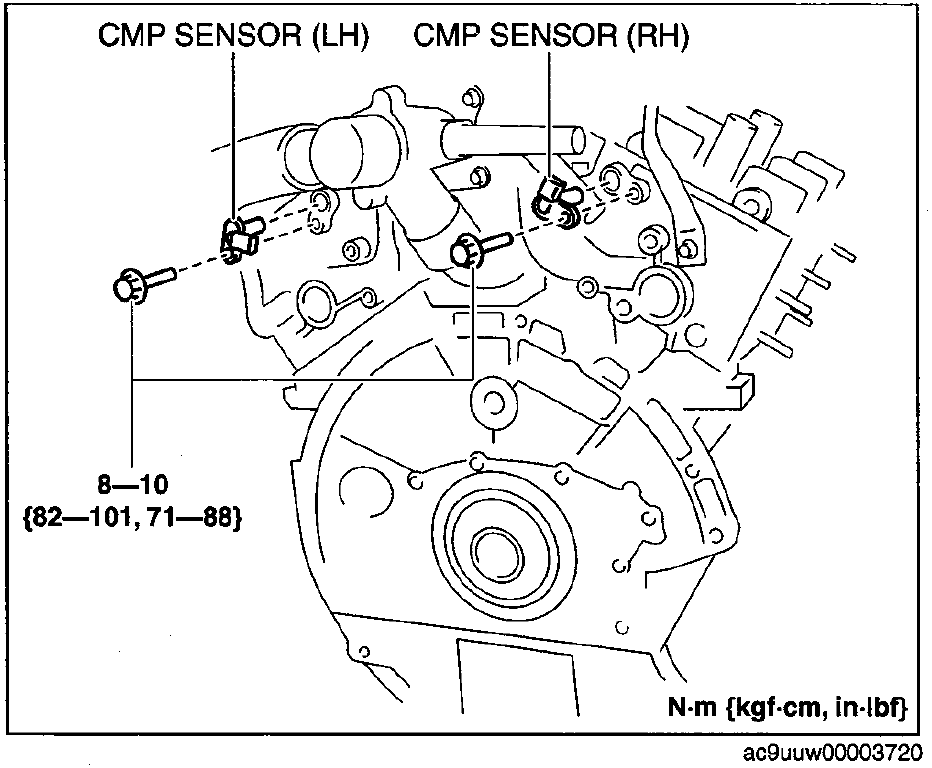

      Fig 1: CMP Sensor LH And RH With Torque Specifications
      G00512274Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
