Third-Row Buckle Removal/Installation: Removal

  1. Fold the third-row seat backs forward.
  2. Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)
  3. Remove the bolt.
  4. Remove the third-row buckle.

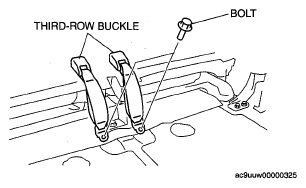

    Fig 1: View Of Third-Row Buckle With Bolt
    G04970847Courtesy of MAZDA MOTORS CORP.
