Second-Row Buckle Removal/Installation: RH

  1. Remove the second-row seat (RH). (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
  2. Remove in bolt.
  3. Remove the second-row buckle (RH).
  4. Install in the reverse order of removal.

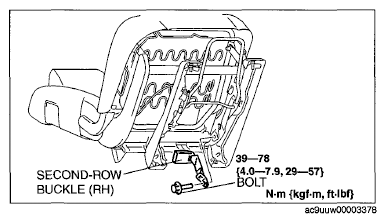

    Fig 1: Exploded View Of Second-Row Buckle With Torque Specifications (RH)
    G06729542Courtesy of MAZDA MOTORS CORP.
