Relay Location

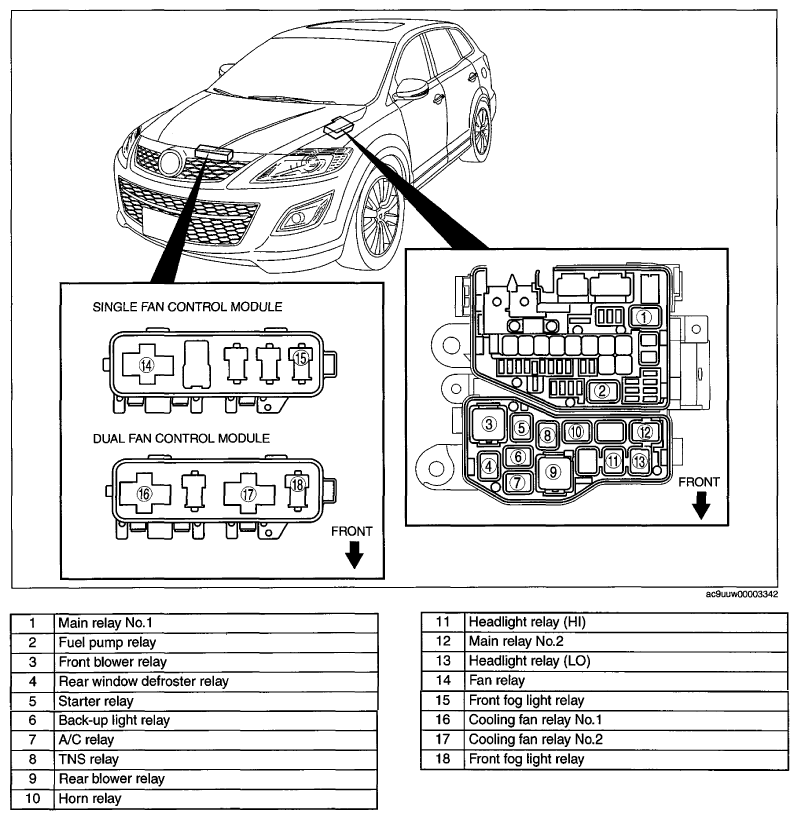

Fig 1: Locating Engine Room Relay Box Relays

G06730338

Courtesy of MAZDA MOTORS CORP.

ENGINE ROOM RELAY BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Main Relay No. 1
Fuel Pump Relay
Front Blower Relay
Rear Window Defroster Relay
Starter Relay
Back-Up Light Relay
A/C Relay
TNS Relay
Rear Blower Relay
Horn Relay
Headlight Relay (Hi)
Main Relay No. 2
Headlight Relay (Lo)
Fan Relay
Front Fog Light Relay
Cooling Fan Relay No. 1
Cooling Fan Relay No. 2
Front Fog Light Relay
