Steering Gear And Linkage Assembly: Notes

CAUTION:
  • Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.
  1. Assemble in the order indicated in the table in the figure.

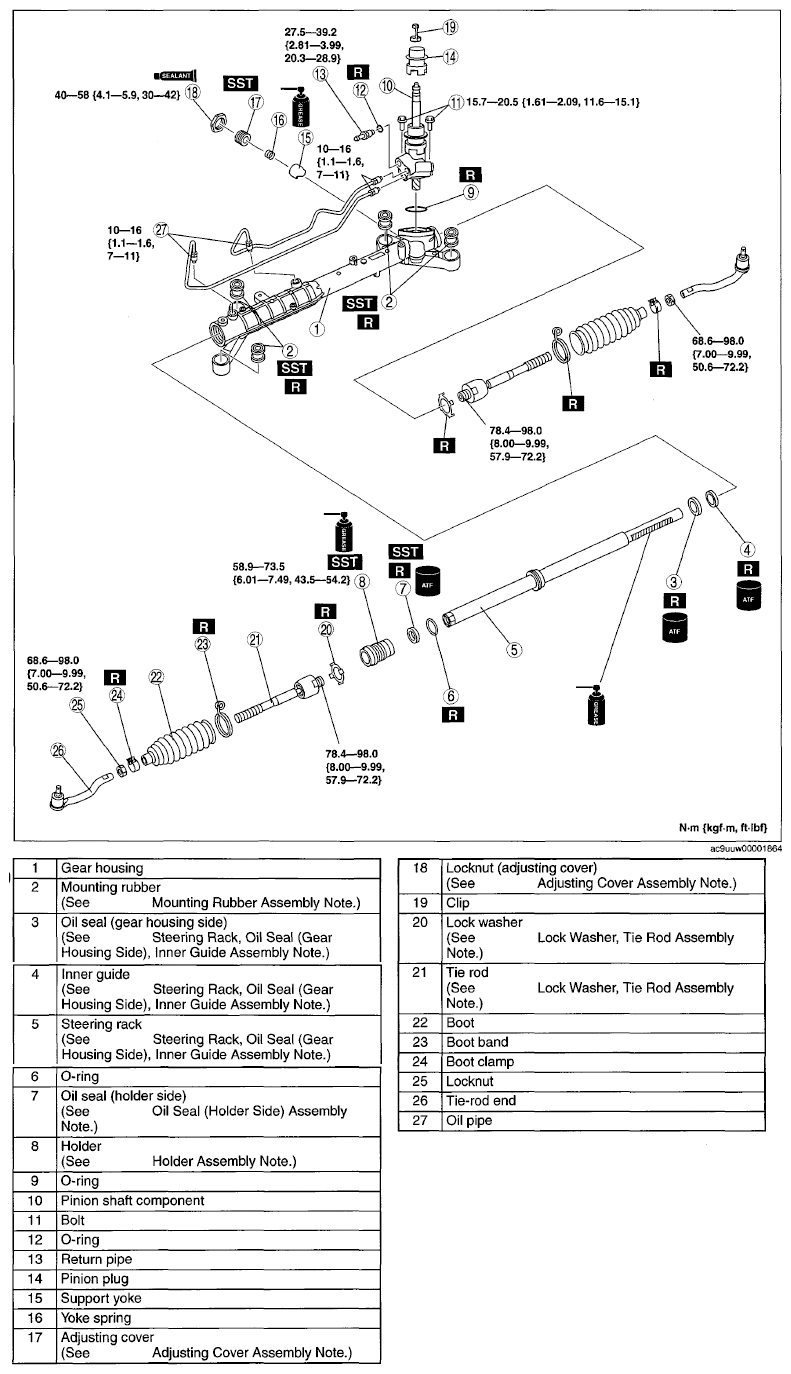

    Fig 1: Locating Steering Gear And Linkage Assembly Components With Torque Specifications
    G06727901Courtesy of MAZDA MOTORS CORP.
