Auto-Dimming Mirror Installation

  1. Install the auto-dimming mirror.
  2. Install the screw.
  3. Connect the auto-dimming mirror connector.
  4. Install the rain sensor. (See RAIN SENSOR REMOVAL/INSTALLATION .)
  5. Install the rain sensor cover. (See RAIN SENSOR REMOVAL/INSTALLATION .)
  6. Connect the negative battery cable.

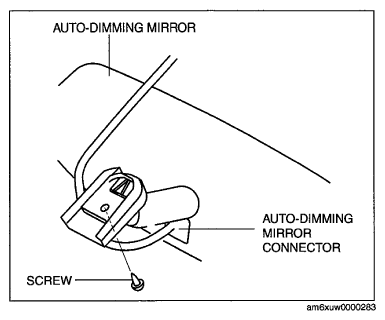

    Fig 1: Identifying Auto-Dimming Mirror, Connector & Screw
    G06730272Courtesy of MAZDA MOTORS CORP.
