DTC U0236 [Advanced Keyless Entry And Start System]: Notes

DTC U0236 CHART (ADVANCED KEYLESS ENTRY AND START SYSTEM)

DTC U0236	Steering lock unit communication system
DETECTION CONDITION	Steering lock unit communication error

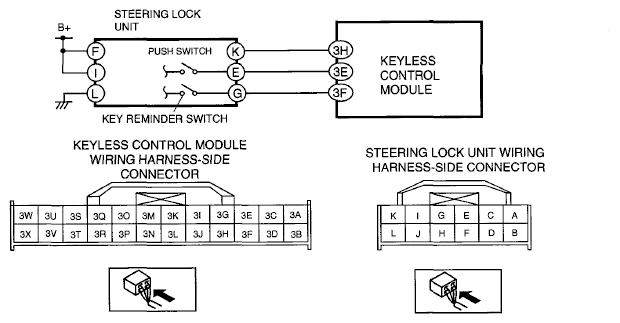

POSSIBLE CAUSE	Steering lock unit malfunction Open or short circuit in wiring harness between keyless control module and steering lock unit Keyless control module malfunction
Courtesy of MAZDA MOTORS CORP.
