DTC U0214 [Advanced Keyless Entry And Start System]: Notes

DTC U0214 CHART (ADVANCED KEYLESS ENTRY AND START SYSTEM)

DTC U0214	Keyless receiver
DETECTION CONDITION	When the keyless receiver power supply voltage is less than 7.5 V

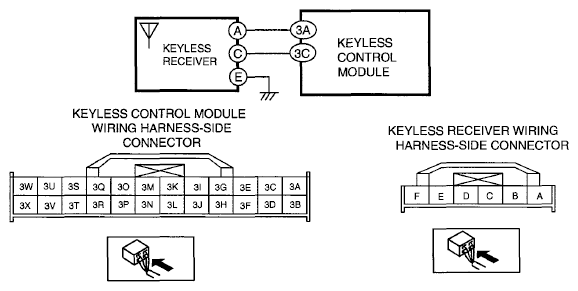

POSSIBLE CAUSE	Keyless receiver malfunction Open or short circuit in wiring harness between keyless control module and keyless receiver Keyless control module malfunction
Courtesy of MAZDA MOTORS CORP.
