DTC B2170 [Advanced Keyless Entry And Start System]: Notes

DTC B2170 CHART (ADVANCED KEYLESS ENTRY AND START SYSTEM)

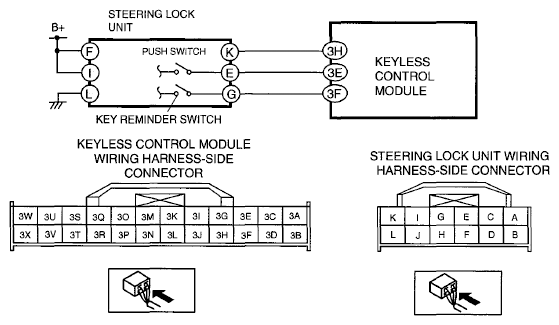

DTC B2170	Push switch (steering lock unit)
DETECTION CONDITION	Detect the push switch OFF signal when ignition switch is ON position
POSSIBLE CAUSE	Steering lock unit malfunction Open or short circuit in wiring harness between keyless control module and steering lock unit Keyless control module malfunction
Courtesy of MAZDA MOTORS CORP.
