DTC B1093 [Advanced Keyless Entry And Start System]: Notes

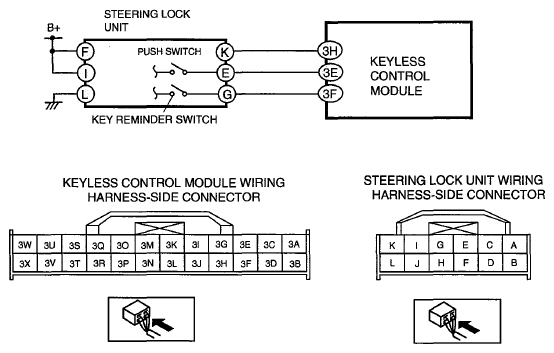

DTC B1093 CHART (ADVANCED KEYLESS ENTRY AND START SYSTEM)

DTC B1093	Steering lock unit communication error
DETECTION CONDITION	Unprogrammed steering lock unit
POSSIBLE CAUSE	Steering lock unit malfunction Open or short circuit in wiring harness between keyless control module and steering lock unit Keyless control module malfunction
Courtesy of MAZDA MOTORS CORP.
