Auto Light/Wiper Control Module Removal/Installation

NOTE:
  • Auto light-off system are integrated with the auto light/wiper control module.
  1. Disconnect the negative battery cable.
  2. Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION article.)
  3. Remove in the order indicated in the illustration below.

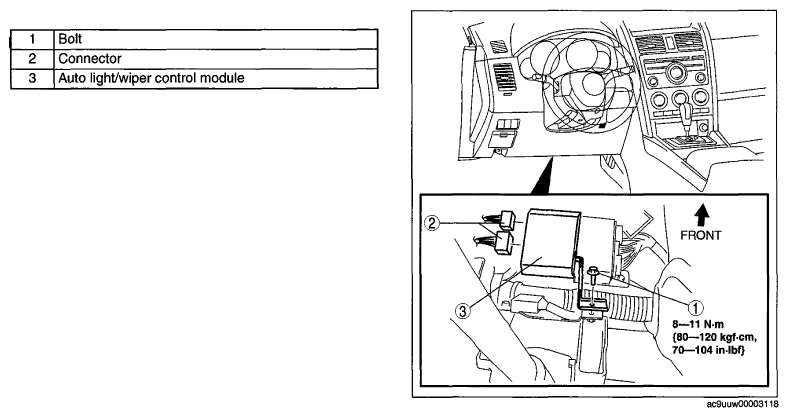

    Fig 1: Auto Light/Wiper Control Module Replacement Components With Torque Specifications
    G06728773Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
