Total Toe-in Adjustment

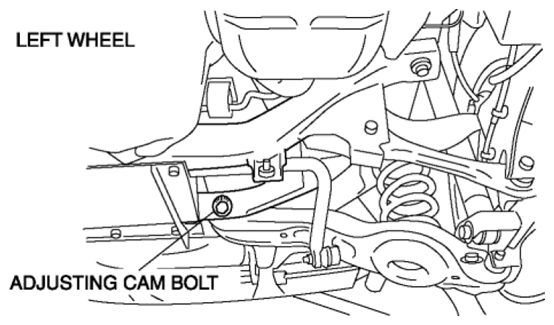

- Loosen the securing nut of the adjusting cam bolt.
- Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Direction Left wheel Right wheel Toe-out direction Counterclockwise Clockwise Toe-in direction Clockwise Counterclockwise - Tighten the nut.
- 80-100 N.m {8.2-10.1 kgf.m, 59.1-73.7 ft.lbf}
Tightening torque
