Front Buckle Removal/Installation

  1. Turn the ignition switch to the LOCK position.
  2. Disconnect the negative battery cable.
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Detach the tab as shown in the figure and remove the connector from the front seat connector.

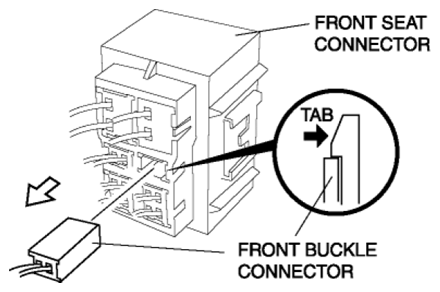

    Fig 1: Front Buckle Connector And Tab
    G08247456
  5. Remove in the order indicated in the table.

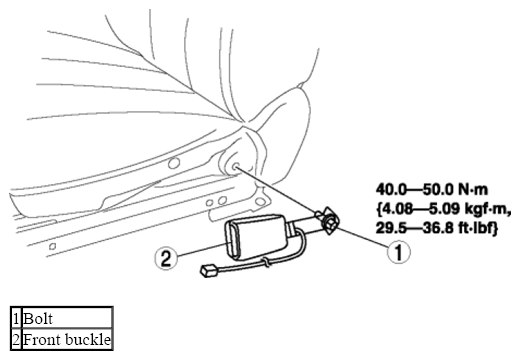

    Fig 2: Front Buckle And Bolt With Torque Specifications
    G08247457
  6. Install in the reverse order of removal.
