Buckle Switch Inspection

  1. Inspect for continuity between the buckle switch terminals using a tester.
    Fig 1: Identifying Buckle Switch Terminals
    G08247459
    • If not as indicated in the table, replace the front buckle.

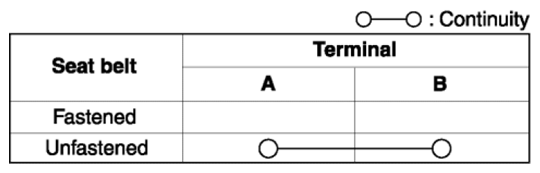

    Fig 2: Identifying Buckle Switch Continuity Reference Chart
    G08247460
