Fuel Pressure Sensor Inspection: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Before performing the following inspection, make sure to follow the procedure as indicated in the troubleshooting flowchart. (See HOW TO USE THIS MANUAL .)

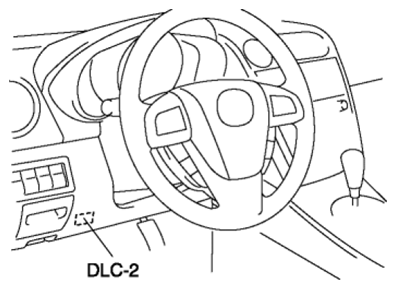

- Connect the M-MDS to the DLC-2.
- Turn the ignition switch to the ON position (Engine off).
- Select the FUEL_PRES PID on the M-MDS.
- After warming up the engine, verify that the FUEL_PRES PID is at the standard value under the following conditions.
- If not as verified, replace the fuel delivery pipe.
Step Condition FUEL_PRES PID 1 - Idle
- 90 s after engine is started
Approx. 3 MPa 2 - Idle
- Spill valve solenoid valve connector is disconnected
Approx. 530 kPa - After connecting the spill valve control solenoid valve connector, clear the DTC.
