Section 2 (Engine Control System [2.3L L3 With TC])
>>
Control System Wiring Diagram
Control System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

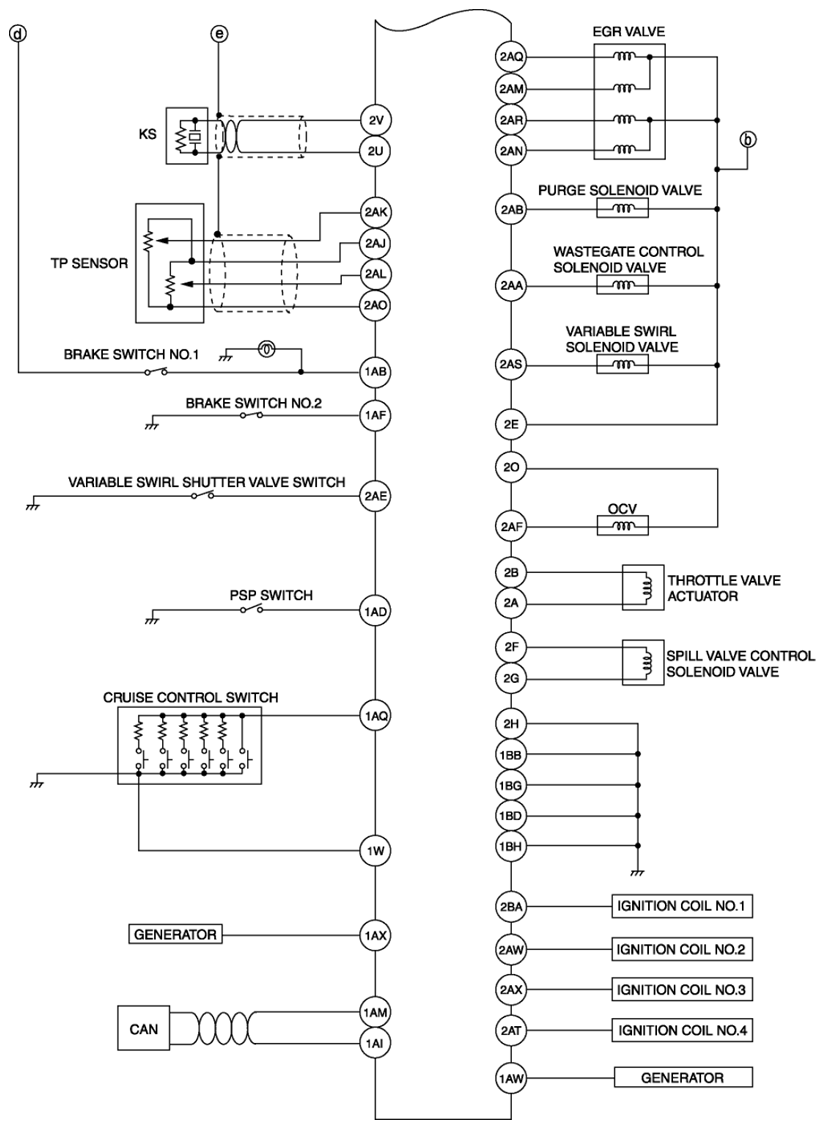

Fig 1: Control System Wiring Diagram [L3 With TC] (1 Of 2)

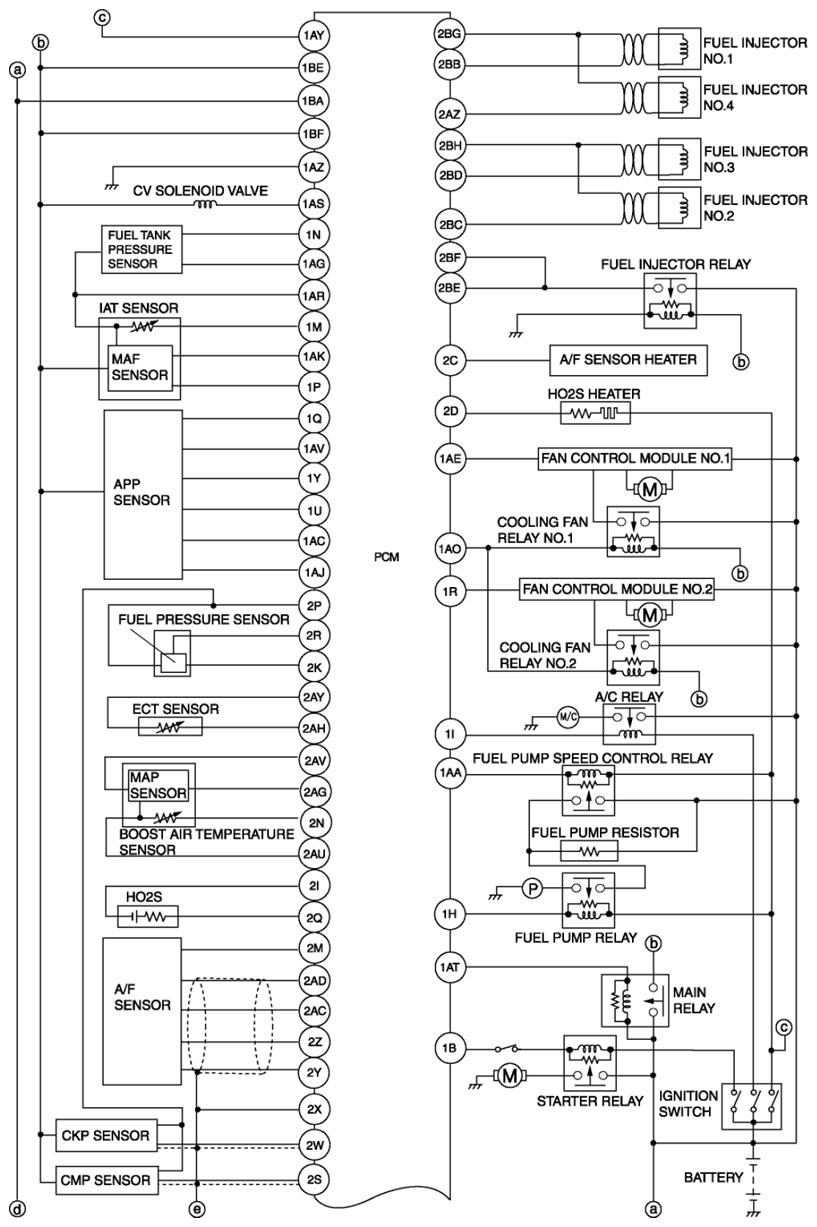

Fig 2: Control System Wiring Diagram [L3 With TC] (2 Of 2)
