Section 2 (Engine Control System [2.3L L3 With TC])
>>
Control System Diagram
Control System Diagram
WARNING:
This page is about a different variant/trim than selected.

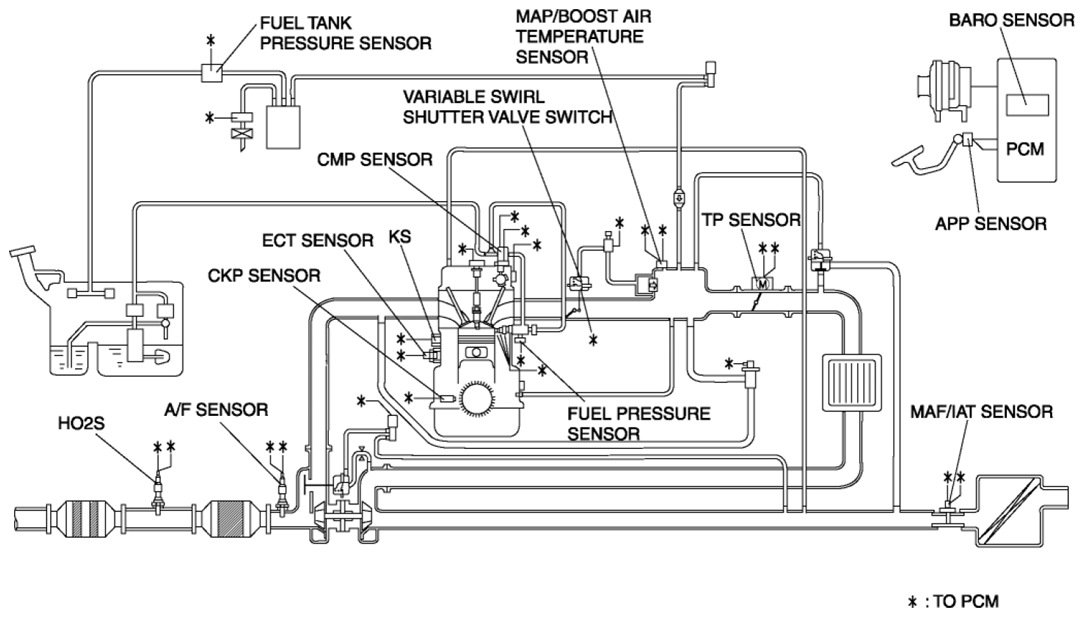

Fig 1: Control System Diagram [L3 With TC]
