Quick Diagnostic Chart

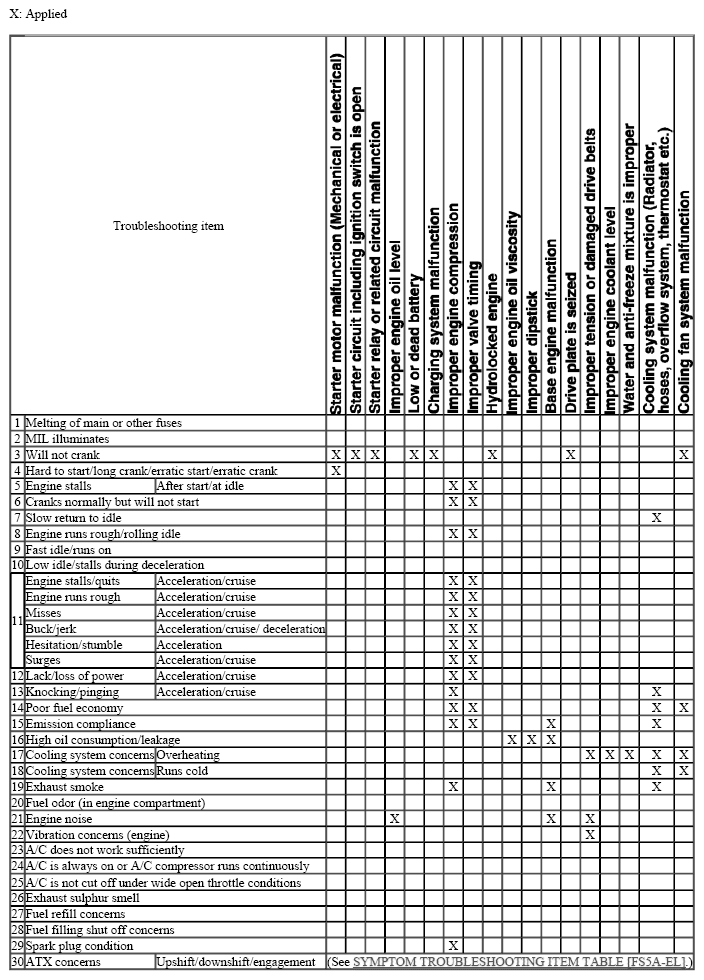

Fig 1: Quick Diagnostic Chart - L5 (1 Of 6)

G08247784

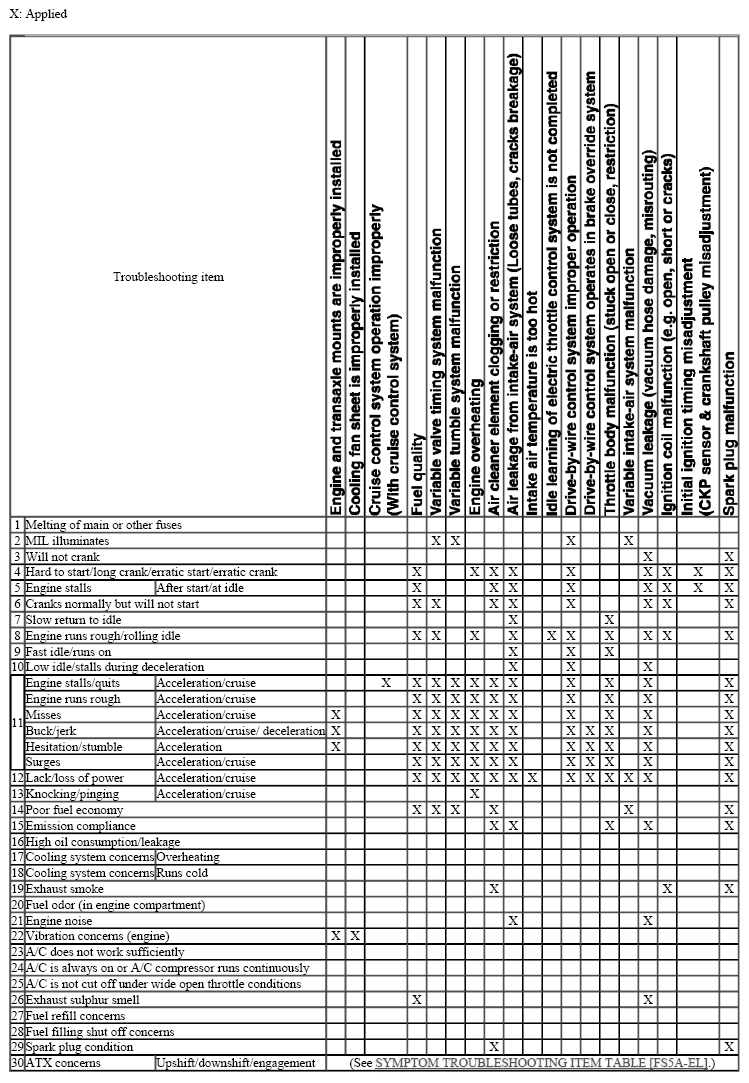

Fig 2: Quick Diagnostic Chart - L5 (2 Of 6)

G08247785

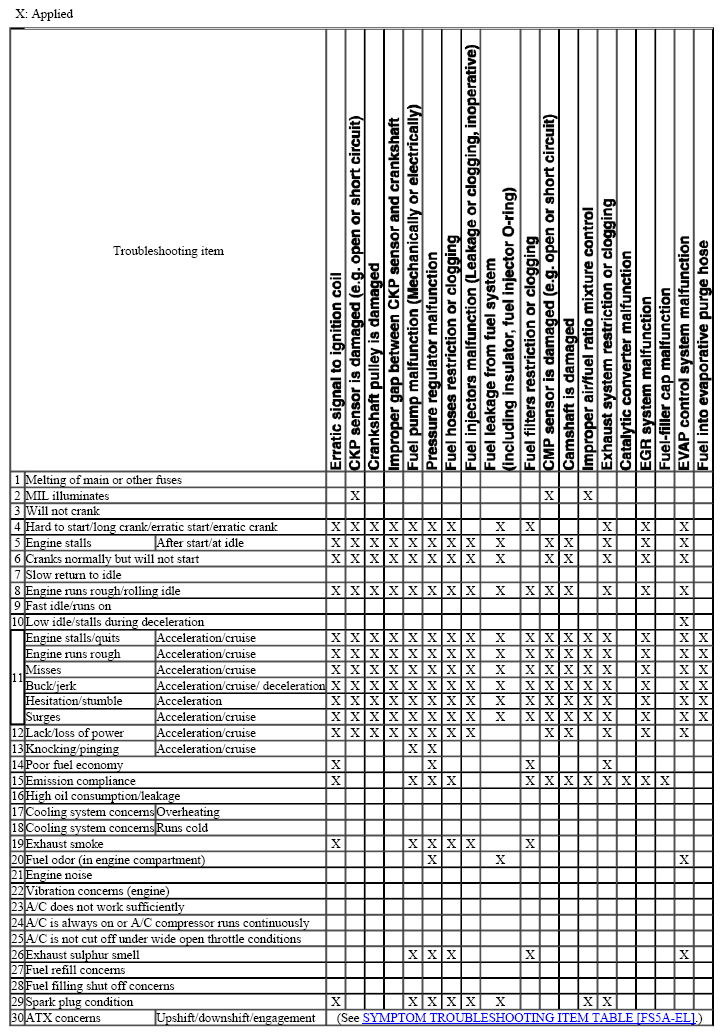

Fig 3: Quick Diagnostic Chart - L5 (3 Of 6)

G08247786

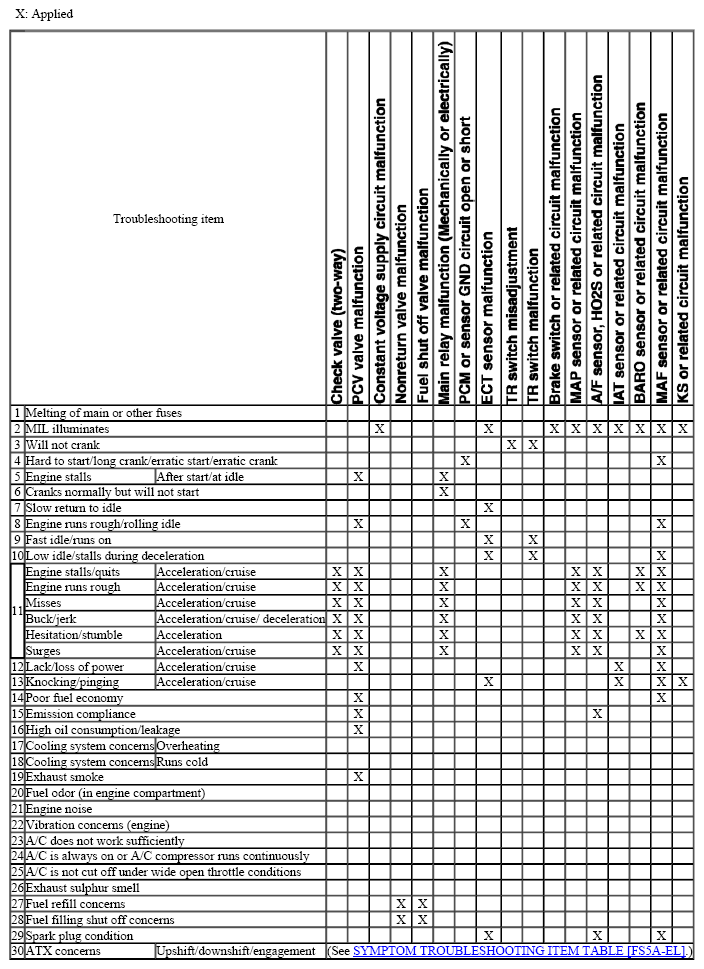

Fig 4: Quick Diagnostic Chart - L5 (4 Of 6)

G08247787

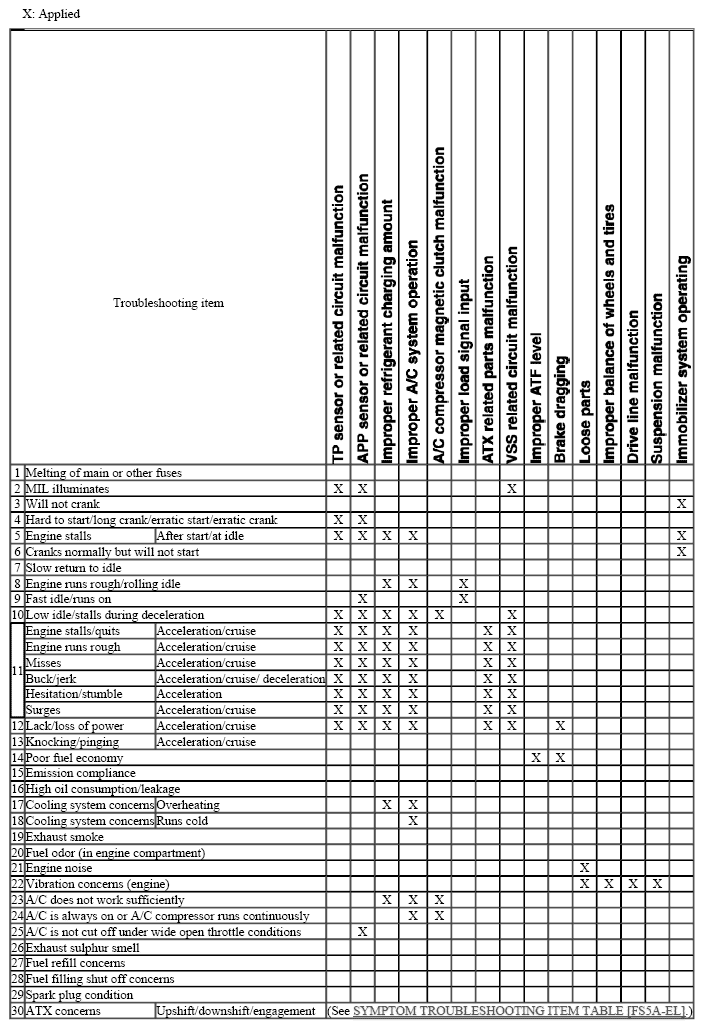

Fig 5: Quick Diagnostic Chart - L5 (5 Of 6)

G08247788

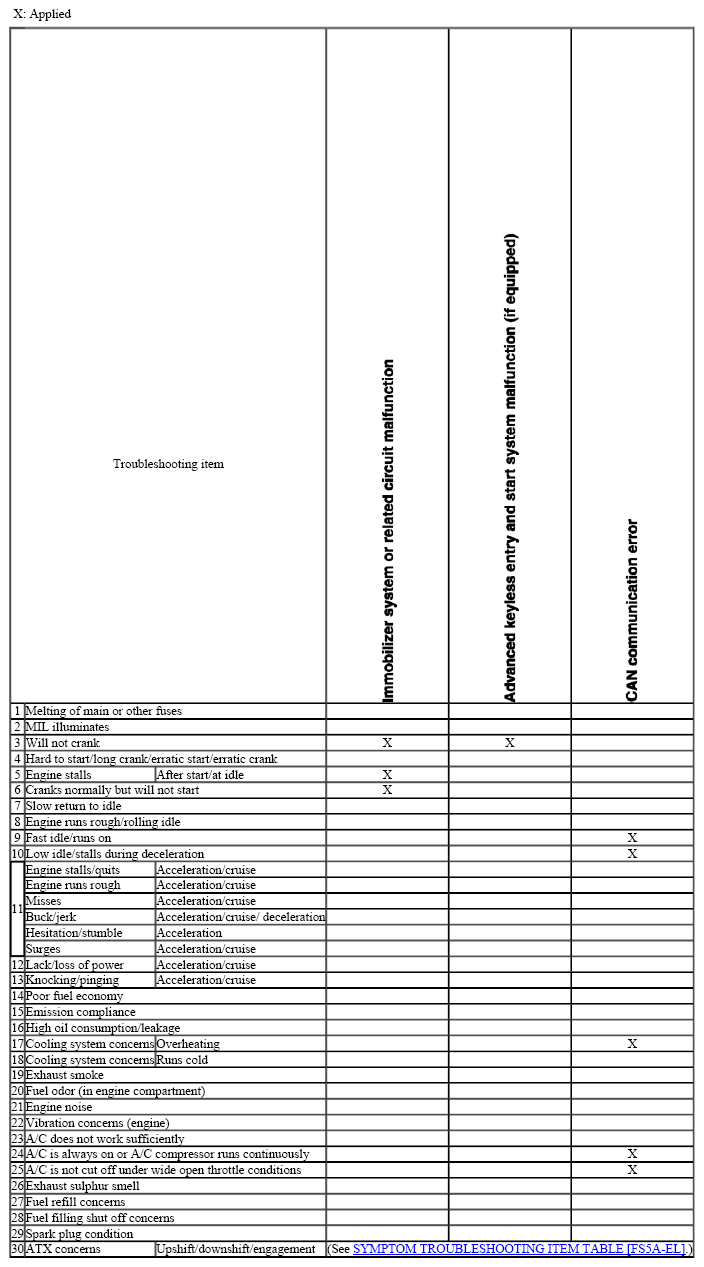

Fig 6: Quick Diagnostic Chart - L5 (6 Of 6)

G08247789
