Control System Device And Control Relationship Chart

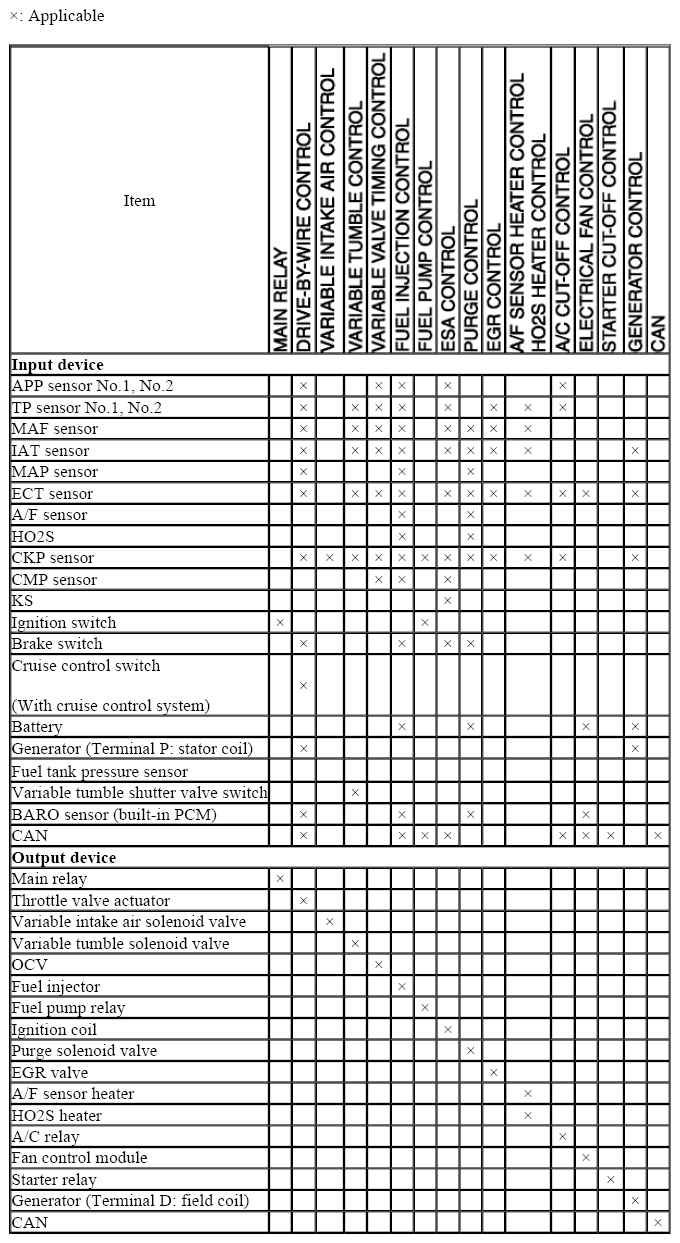

Fig 1: Control System Device And Control Relationship Chart (L5)

G08247783
