Continuity Inspection

  1. Inspect the following if the power steering is inoperative (See POWER STEERING FLUID INSPECTION .):
    • Power steering fluid level
    • Power steering fluid leakage
    • Power steering fluid pressure
  2. Disconnect the PSP switch connector.
  3. Start the engine.
  4. Inspect for continuity between the PSP switch terminal and ground using a tester.

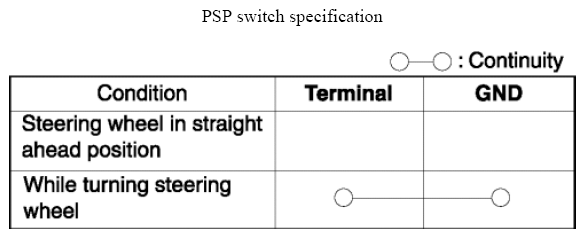

    Fig 1: PSP Switch Terminal And Ground Continuity Chart
    G08245119
