Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System [2.5L L5]
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
Purge control
Purge control

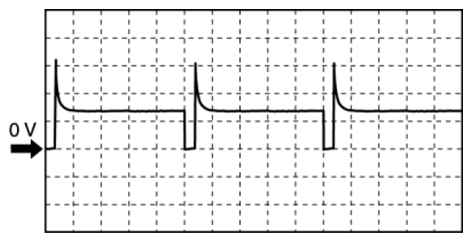

Fig 1: Purge Control Voltage Graph
PCM terminals
1BA(+)-body ground(-)
Oscilloscope setting
10 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
