HO2S heater control
HO2S heater control

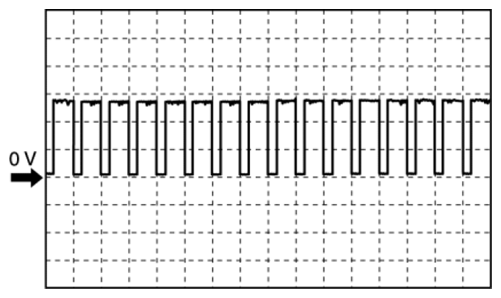

Fig 1: HO2S Heater Control Graph
PCM terminals
2B(+)-body ground(-)
Oscilloscope setting
5 V/DIV (Y), 1 s/DIV (X), DC range
Vehicle condition
Idle (immediately after starting the engine)
