APP sensor No.2 signal
APP sensor No.2 signal

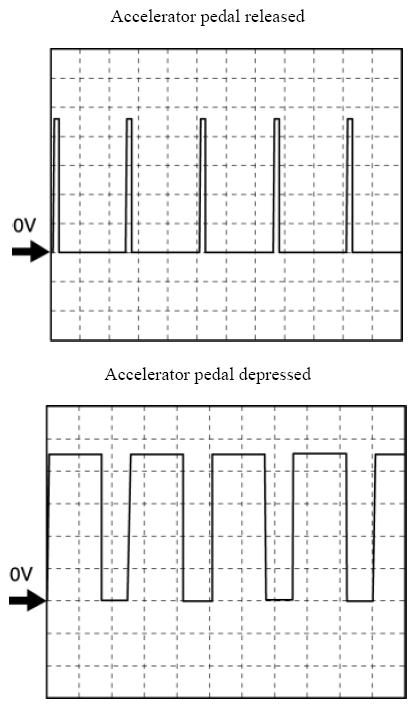

Fig 1: App Sensor No.2 Signal Graph
PCM terminals
1AO(+)-body ground(-)
Oscilloscope setting
2.5 V/DIV (Y), 2 ms/DIV (X), DC range
Vehicle condition
Turn the ignition switch to the ON position.
