CX-7 i SV, 2.5L Eng VIN M
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System [2.5L L5]
>>
Control System Wiring Diagram
Control System Wiring Diagram

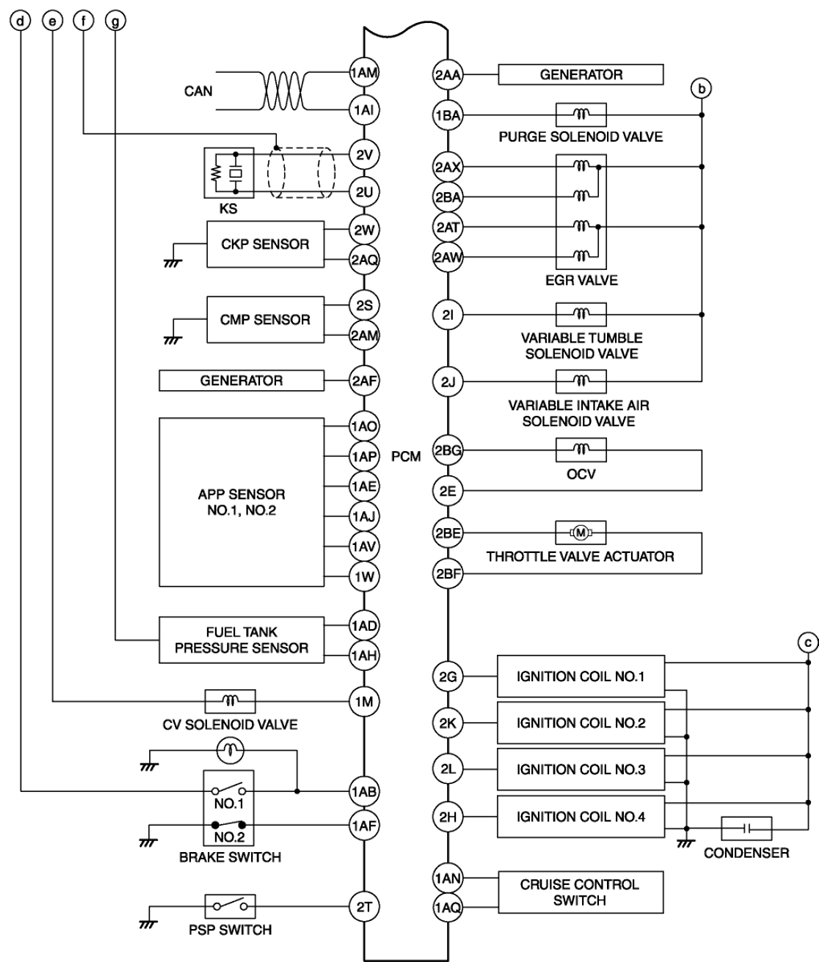

Fig 1: Control System Wiring Diagram [L5] (1 Of 2)

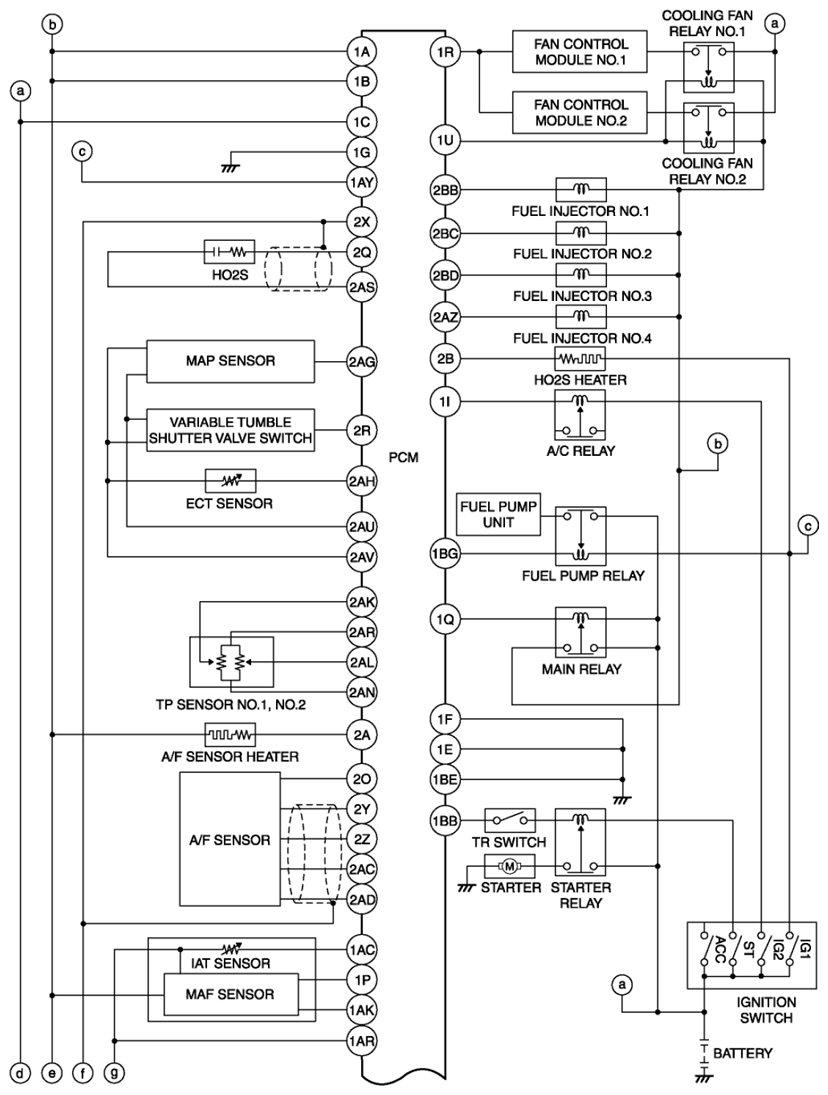

Fig 2: Control System Wiring Diagram [L5] (2 Of 2)
