CX-7 i SV, 2.5L Eng VIN M
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System [2.5L L5]
>>
Control System Diagram
Control System Diagram

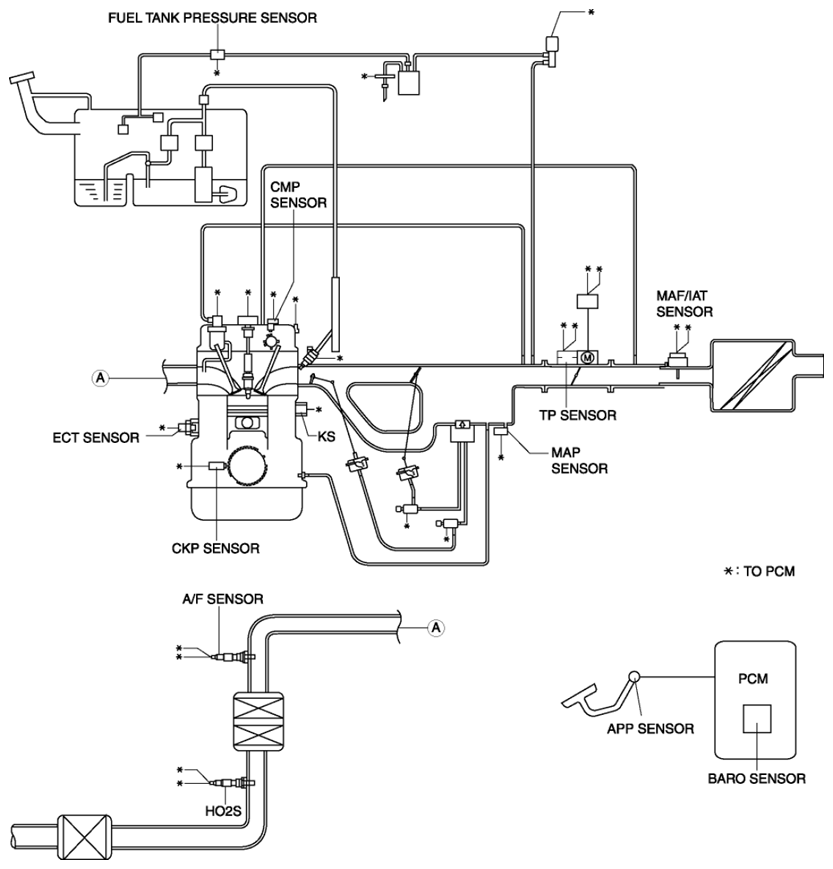

Fig 1: Control System Diagram [L5]
