Air Fuel Ratio (A/F) Sensor Removal/Installation
WARNING:
- A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
- Disconnect the negative battery cable.
- Disconnect the A/F sensor connector.

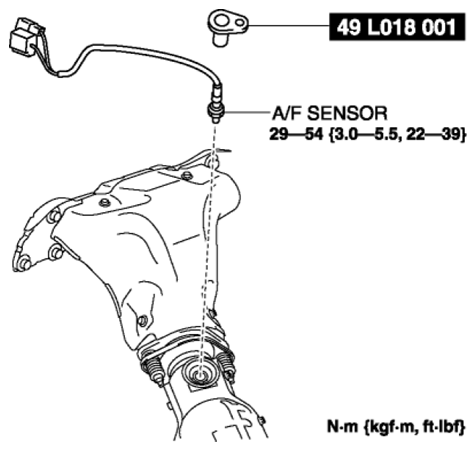

- Remove the A/F sensor using the SST.
- Install in the reverse order of removal.
