TCS Off Switch Inspection

  1. Remove the TCS OFF switch. (See TCS OFF SWITCH REMOVAL/INSTALLATION .)
  2. Verify that the continuity is as indicated in the table.

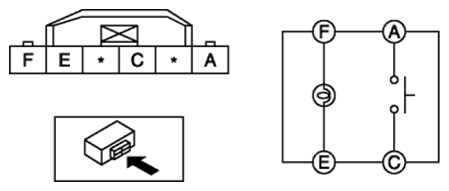

    Fig 1: Identifying TCS OFF Switch Connector Terminals
    G08245460
    • If not as indicated in the table, replace the TCS OFF switch.

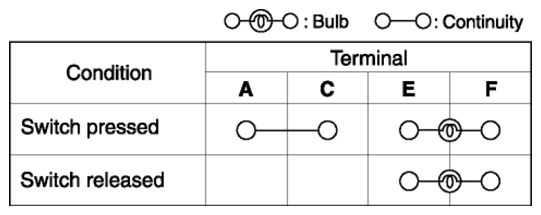

    Fig 2: TCS OFF Switch Connector Terminals Continuity Chart
    G08245461
