Rear Abs Wheel-Speed Sensor Removal/Installation [AWD]

  1. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

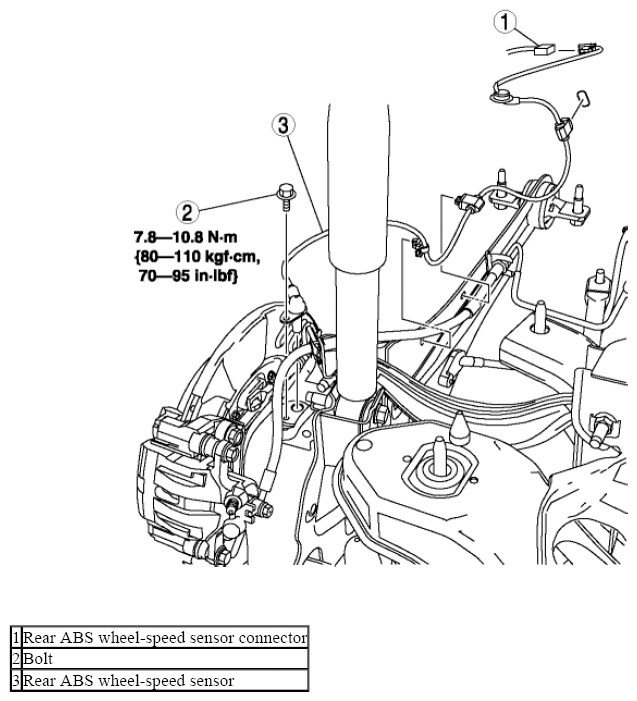

    Fig 1: Rear ABS Wheel-Speed Sensor, Connector And Bolt With Torque Specification (AWD)
    G08245446
  3. Install in the reverse order of removal.
