Clearance Inspection

Verify the clearance between the front ABS sensor rotor and the front ABS wheel-speed sensor.
- If there is any malfunction, check for improper installation, and replace if necessary.

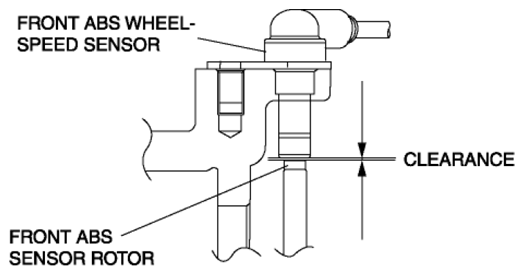

Fig 1: Checking Clearance Between Front ABS Sensor Rotor And Front ABS Wheel-Speed Sensor
- 0.7-1.5 mm {0.028-0.059 in}
