Rear Power Window Regulator Removal/Installation

  1. Fully lower the rear door glass.
  2. Remove the following parts:
    1. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION )
    2. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION )
    3. Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION )
  3. To access the glass installation bolt, position the rear door glass so that the distance from the top of the rear door glass to the upper part of the rear beltline molding is approx. 140 mm {5.5 in}.

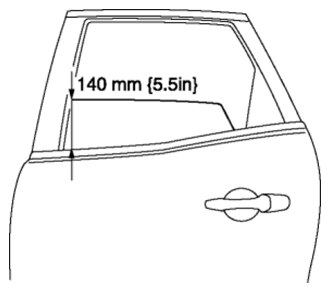

    Fig 1: Identifying Distance Between Top Of Rear Door Glass To Upper Part Of Rear Beltline Molding
    G08245908
  4. Disconnect the negative battery cable.
  5. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION )
  6. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION )
  7. Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION )
  8. Remove the rear power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION )
  9. Remove the nuts.

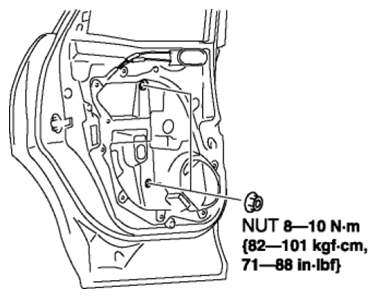

    Fig 2: Rear Door Nuts With Torque Specifications
    G08245909
  10. Insert a hand through the speaker installation hole, rotate the drum housing in the direction shown in the figure to detach the tabs from the rear door unit.

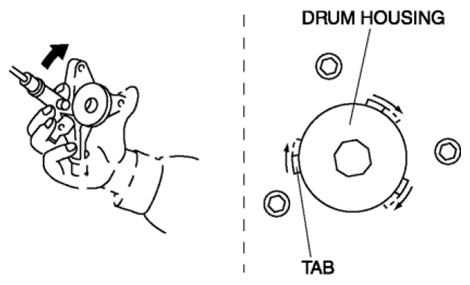

    Fig 3: Rotating Drum Housing
    G08245910
  11. Remove the rear power window regulator through the speaker installation hole.

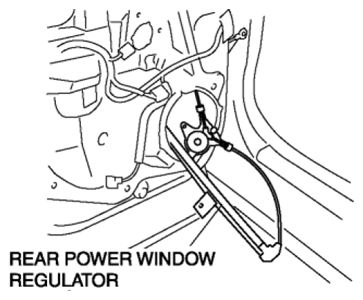

    Fig 4: Identifying Rear Power Window Regulator
    G08245911
  12. Install in the reverse order of removal.
    CAUTION:
    • Make sure the cable does not unspool from the drum housing when installing.
