Not Reusing Quarter Window Glass

NOTE:
  • For the areas of the sealant that are difficult to cut, use the piano wire and follow the procedure under "Reusing Quarter Window Glass".
  1. Cut out the sealant all around the glass from inside the vehicle using a sealant remover.

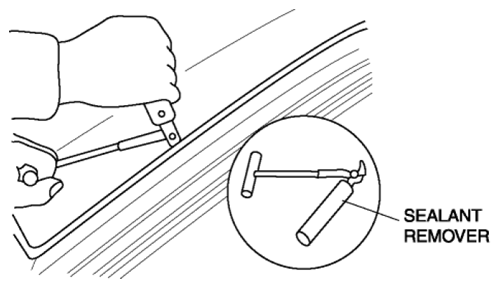

    Fig 1: Cutting Out Sealant From Glass Using Sealant Remover
    G08245954
    WARNING:
    • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
  2. Remove the quarter window glass.
