Power Window Main Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION )
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION )
  4. Disconnect the power door mirror switch connector and the power window main switch connector.
  5. Remove the screws, then the power window main switch.

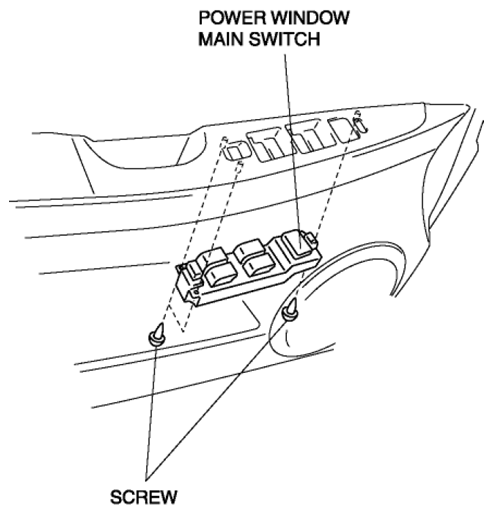

    Fig 1: Identifying Power Window Main Switch And Screws
    G08245916
  6. Install in the reverse order of removal.
