Power Outer Mirror Inspection

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION )
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION )
  4. Remove the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION )
  5. Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.

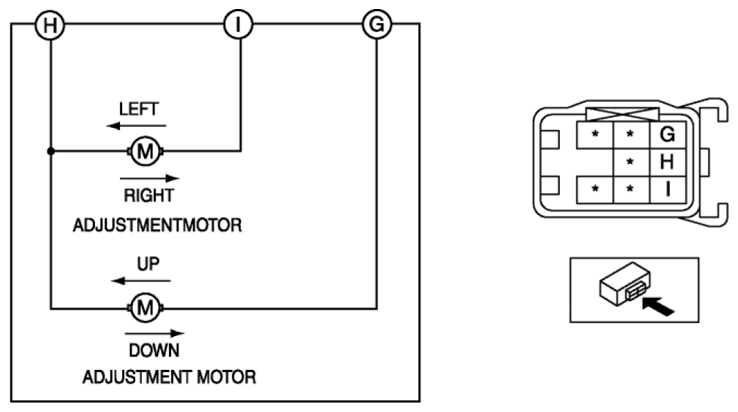

    Fig 1: Power Outer Mirror Operation Circuit
    G08245968
    • If not as specified, replace the power outer mirror.
    Mirror operation terminal
    B+ GND
    Up G H
    Down H G
    Left I H
    Right H I
  6. Inspect for continuity between the power outer mirror heater terminals.

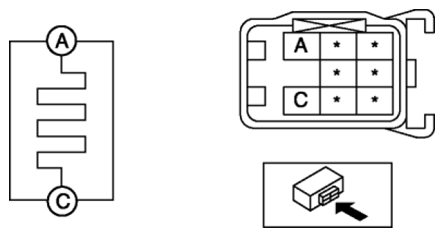

    Fig 2: Checking Continuity Between Power Outer Mirror Heater Terminals
    G08245969
    • If not as specified, replace the power outer mirror.

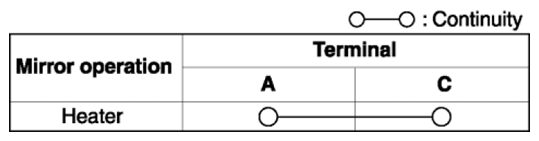

    Fig 3: Power Outer Mirror Heater Terminals Continuity Chart
    G08245970
