Ignition Switch Inspection

Verify that the continuity between the ignition switch terminals is as indicated in the table.

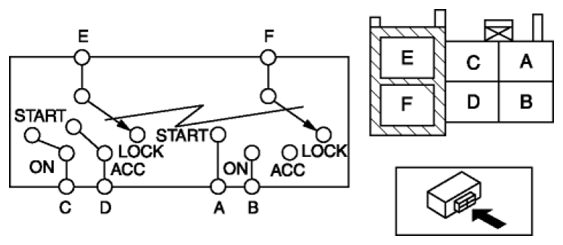

Fig 1: Checking Continuity Between Ignition Switch Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the ignition switch.

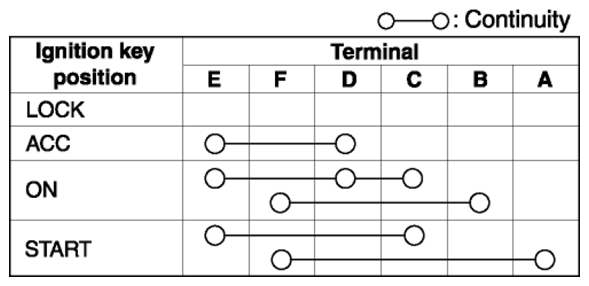

Fig 2: Ignition Switch Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.
