Transmitter Id Code Registration [Keyless Entry System]

NOTE:
  • When registering the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
  • After ID code registering, remove the key from the steering lock and verify that all doors lock/unlock normally using the transmitter.

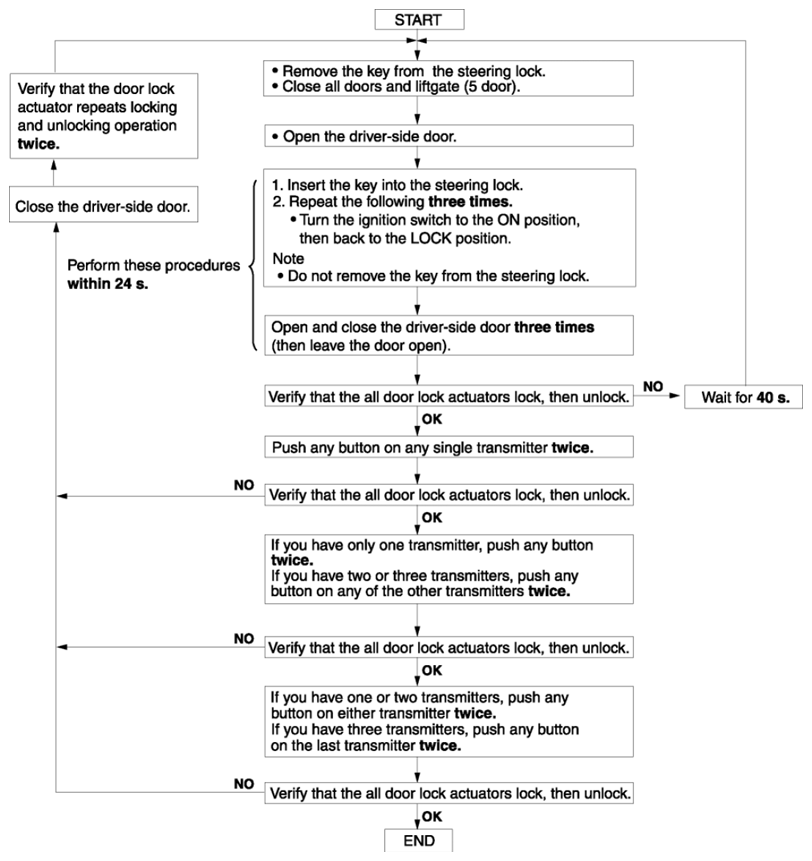

Fig 1: Transmitter ID Code Registration Flow Chart
G08247564
