Transmitter Battery Replacement [Keyless Entry System]

Insert a flathead screwdriver into the transmitter notch and remove the key from the transmitter by pressing the tab.

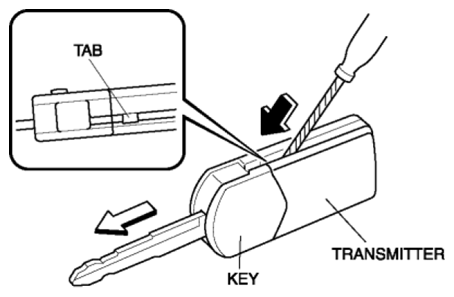

Fig 1: Removing Key From Transmitter Using Flathead Screwdriver
Insert a flathead screwdriver into the transmitter notch and open the transmitter.

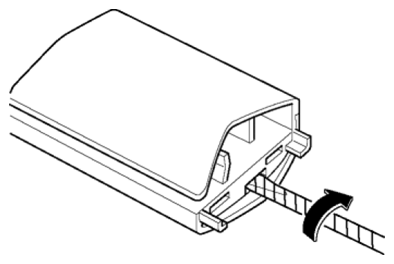

Fig 2: Opening Transmitter Using Flathead Screwdriver
Remove the battery by pressing it in the direction of the arrow shown in the figure.

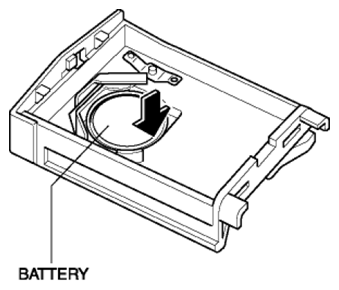

Fig 3: Transmitter Battery
Install the new battery (CR1620) with the plus pole facing down.

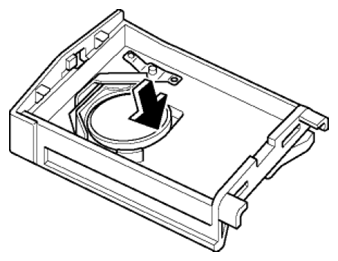

Fig 4: Installing Battery
Align the upper and lower covers and close the transmitter.
Battery type
- Lithium battery CR1620
  Battery life
- Approx. 2 years (when used approx. 10 times/day)
Install the key to the transmitter.
NOTE:
- When connecting the key to the transmitter, grip the key and the transmitter as shown in the figure and connect until a click sound is heard.
- If the key is not completely connected to the transmitter, they may come apart.

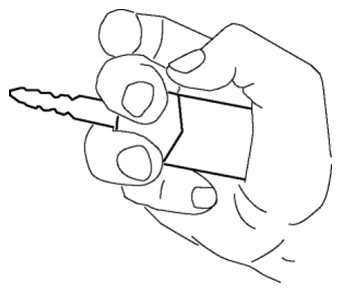

Fig 5: Installing Key To Transmitter
