Request Switch Removal/Installation [Advanced Keyless Entry And Start System]: Driver-Side/Passenger-Side

  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the front outer handle. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
  4. Remove the screws A, then remove the handle seat and plate.
  5. Remove screw B, then remove the request switch.

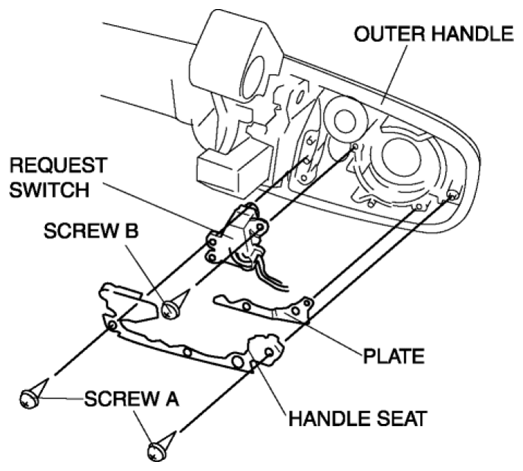

    Fig 1: Request Switch Components
    G08247594
