Request Switch Inspection [Advanced Keyless Entry And Start System]

Inspect for continuity between request switch terminals A and B.

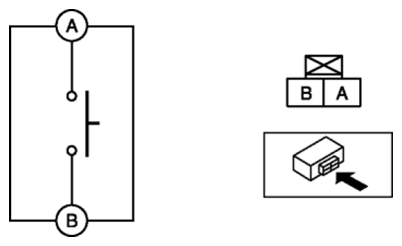

Fig 1: Checking Continuity Between Request Switch Terminals A And B
- If not as specified, replace the request switch.

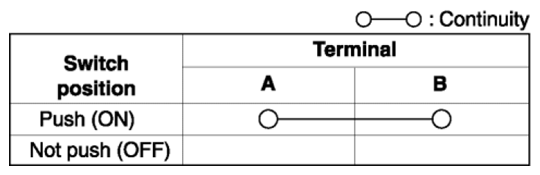

Fig 2: Request Switch Position Reference Chart
