Liftgate Latch Switch Inspection

When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

Fig 1: Locating Latch Lever
Inspect for continuity between the liftgate latch switch terminals.

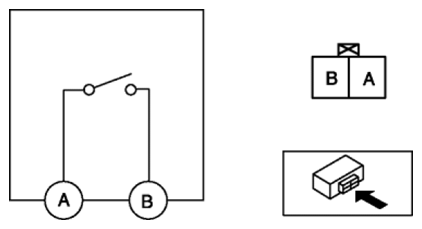

Fig 2: Checking Continuity Between Liftgate Latch Switch Terminals
- If not as specified, replace the liftgate latch and lock actuator.

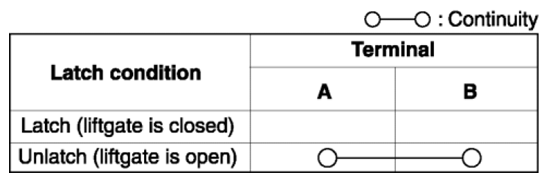

Fig 3: Latch Condition Continuity Reference Chart
