Keyless Receiver Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the keyless receiver connector.
  4. Remove the nut, then remove the keyless receiver.

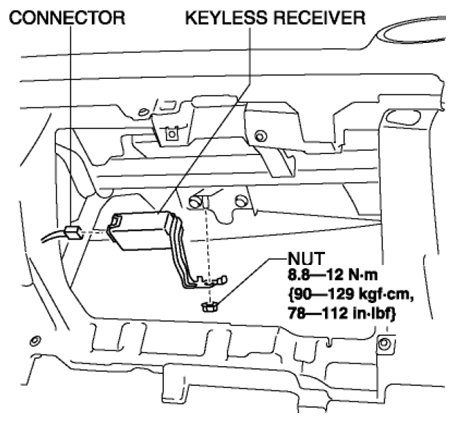

    Fig 1: Keyless Receiver, Connector And Nut With Torque Specification
    G08247556
  5. Install in the reverse order of removal.
