Keyless Control Module Removal/Installation [Advanced Keyless Entry And Start System]
- If the keyless control module is replaced, always perform the following procedure.
- Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS ENTRY AND START SYSTEM] .)
- Immobilizer System-related Parts Programming [No.6 Programming Procedure Due to Keyless Control Module Replacement] (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND START SYSTEM] .)
- Disconnect the negative battery cable.
- Remove the front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

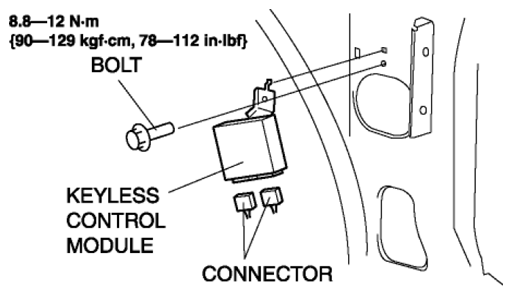

- Disconnect the keyless control module connector.
- Remove the bolt, then remove the keyless control module.
- Install in the reverse order of removal.
