Keyless Beeper Removal/Installation [Advanced Keyless Entry And Start System]

  1. Disconnect the negative battery cable.
  2. Remove the mud guard.
  3. Remove the bolts.
  4. Disconnect the connector, then remove the keyless beeper.

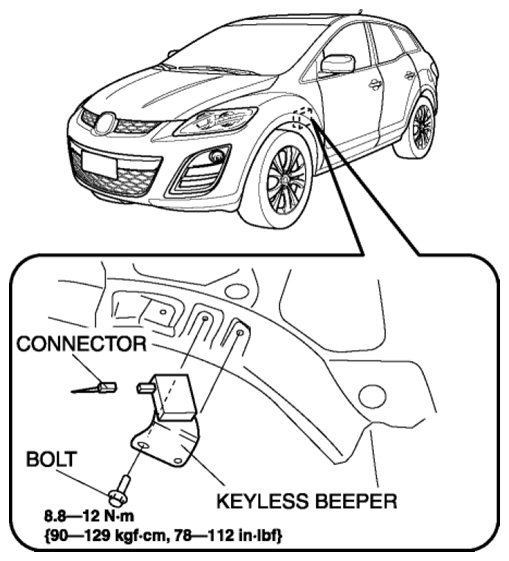

    Fig 1: Keyless Beeper, Connector And Screw With Torque Specification
    G08247593
  5. Install in the reverse order of removal.
