No.1 Additional Key Programming Procedure (Using Two Valid Keys): Procedure

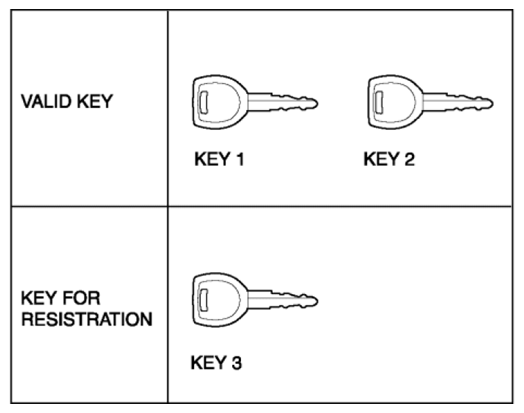

Fig 1: Identifying Valid Key And Programmed Key

Step	Procedure	Action after procedure
1	LAUNCH PROGRAMMING MODE  Turn the ignition switch to the ON position using key 1. After verifying that the security light illuminates for approx. 3 s  and turns off, turn the ignition switch to the LOCK position within approx. 4 s  using key 1. Remove key 1. Turn the ignition switch to the ON position using key 2. After verifying that the security light illuminates for approx. 3 s  and turns off, turn the ignition switch to the LOCK position within approx. 4 s  using key 2. Remove key 2.	Go to the next step.
2	PERFORM ADDITIONAL KEY PROGRAMMING  Turn the ignition switch to the ON position using key 3. Verify that the security light illuminates for approx. 3 s  , and then turns off. Remove key 3. Are there other keys to be programmed?	Yes	Go back to Step 1.
		No	Go to the next step.
3	VERIFY KEY PROGRAMMING IS CORRECT  Verify that the engine can start and run for approx. 5 s or more  using all the programmed keys. NOTE: When verifying that the engine starts, wait at least approx. 5 s or more  before starting the engine using the next key.	Procedure is completed
