M-MDS Connecting Procedure

NOTE:
  • Do not place the M-MDS in the vehicle while programming the immobilizer system.
  1. Fully lower the door glass.
  2. Connect the M-MDS to the DLC-2.

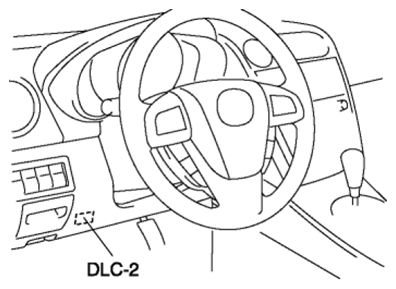

    Fig 1: Identifying DLC-2
    G08247571
  3. Place the M-MDS outside the vehicle.
    CAUTION:
    • Cover the vehicle body with a clean rag so as not to damage the vehicle body with the cable.
