Advanced Keyless Entry And Start System
NOTE:
- Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the CUSTOMIZED FUNCTION SETTING PROCEDURE.

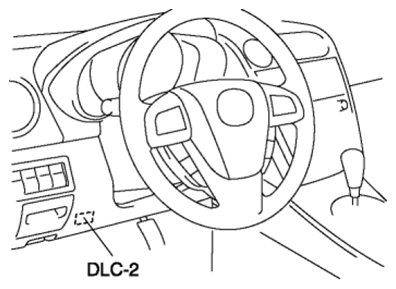

- Connect the M-MDS to the DLC-2.
- After the vehicle is identified, select the following items from the initial screen of the M-MDS.
When using the IDS (laptop PC)
- Select the "Module Programming".
- Then, select items from the screen menu in the following order.
- Select "Programmable Parameters".
- Select "RKE".
- Select an item name, and then select option.
Mazda Modular Diagnostic System (M-MDS) display Function Initial setting Setting content Control unit Answer Back Buzzer Answer back buzzer function can be set. Enabled Disabled/ Enabled Keyless control module Advanced key battery low warning Advanced key remaining battery level/battery dead warning can be set. Enabled Disabled/ Enabled Keyless control module Automatic Locks Automatic locks function can be set. Disabled Disabled/ Enabled Keyless control module Auto relock timer (with AKE) Auto re-lock operation timing can be changed. 30s 30s/ 60s/ 90s Keyless control module 2 stage door unlocking by request switch The method for unlocking the doors using the request switch can be selected. Enabled Disabled/ Enabled Keyless control module 2 stage door unlocking by transmitter The method for unlocking the doors using the transmitter can be selected. Enabled Disabled/ Enabled Keyless control module
